Name: KitchenAid® Multifunction Over-the-Range Oven with Flush Built-In Design
Brand: KitchenAid
SKU: KMMF530PWH
Price: 1119.0 USD
Availability: inStock
Rating: 2.2 (5 reviews)

Overview

Product Description

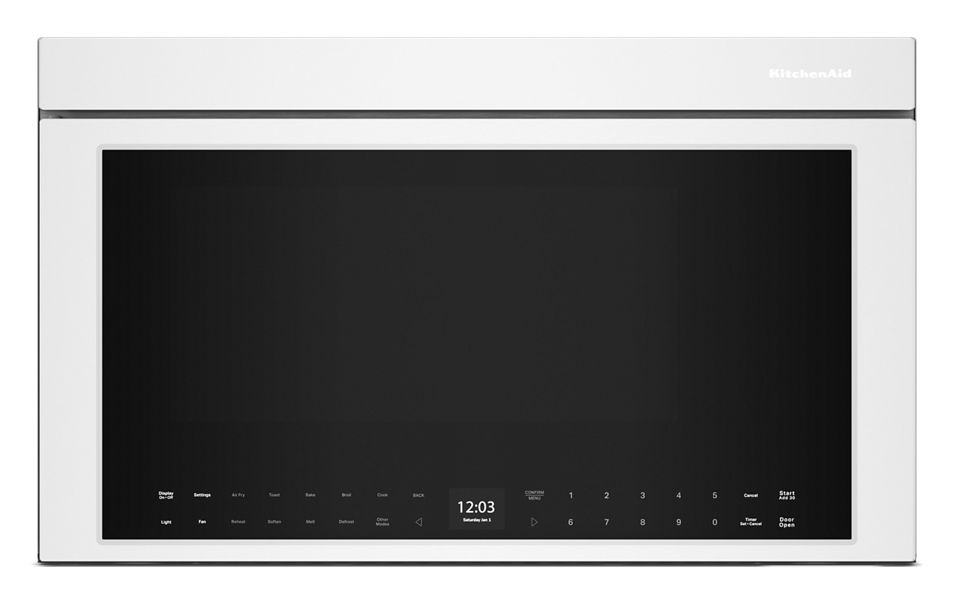

KitchenAid® Multifunction Over-the-Range Oven with Flush Built-In Design

This KitchenAid® Multifunction Over-the-Range Oven combines the versatility of an air fryer, toaster oven, convection oven, microwave and ventilation hood, all in one space-saving appliance designed for flush installation within a standard 12 ¾" cutout.

Air Fry Mode

Replaces a countertop air fryer for all of the crisping with none of the clutter. Triple heating elements and a fan circulate hot air around the included air fry basket to crisp and brown food with less oil.*

*When compared to deep frying.

Multifunction Oven Modes

Replace a convection or toaster oven, freeing up counter space by elevating your baking, roasting, broiling and toasting. Triple heating elements and a fan direct heat where it's needed to cook at temperatures up to 450°F.

Additional Features

Flush Built-In Design

Provides a seamless built-in look within a standard 12 ¾” deep cutout. When closed, the microwave door fits evenly with surrounding cabinet fronts, so your kitchen stands out, not the appliance.

Turntable-Free Design

Maximizes cooking space for large dishes or multiple items at the same time. A hidden motor circulates microwave heating throughout the entire oven, eliminating the need for a traditional turntable.

Smart Appliance

Gives you control over every stage of cooking. Remotely preheat, monitor and control the microwave oven with the KitchenAid™ App or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.*

*WiFi & App Required. Features subject to change. Details & privacy info at kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada). Appliance must be set to Remote Enable. Google® is a trademark of Google LLC. Alexa is a trademark of Amazon.com, Inc. or its affiliates.

Backlit Touch Controls

Illuminate when in use and fade unobtrusively into the sleek black glass of the oven door when the oven is off. A full-color LCD display makes it easy to see and select cooking modes, temperatures and cook times.

Microwave Cooking Modes

Provide convenient presets for popular cooking tasks, including cook, reheat, soften, melt and defrost. The microwave will automatically adjust cook time and power levels for different foods and beverages, taking the guesswork out of choosing settings.

Three-Speed 400 CFM Motor Class* Ventilation System *Performance varies based on installation. Resources available at AHAM.org

Features low, medium and high settings to help clear the air of smoke and steam, keeping up with all kinds of cooking adventures, from gentle simmering to high-heat searing.

Keep Warm Mode

Maintains low heat for up to 60 minutes to keep cooked foods at serving temperature, allowing you to focus on other steps in your creative process or finish one dish while another rests.

Steam Clean Mode

Uses the power of steam to help loosen cooked-on food without the need for harsh cleaners. After running this cycle, just wipe down the inside of the microwave with a damp cloth.

Two LED Lights with Night Light Setting

Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

Stainless Steel Covered Grease Filters

Conceal aluminum mesh filters behind a sleek stainless steel panel for a fully finished look. Filters use multiple layers of screening to help capture the grease and odors of high-heat cooking and remove for easy cleaning with soap and water.

1.1 Cu. Ft. Capacity

Comfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish or multiple items at the same time.

950-Watt Microwave Cooking Power

Cooks quickly to boil water, defrost ingredients or warm completed dishes to enjoy again.

What's in the box

Model KMMF530P includes a Dishwasher-Safe Air Fry Basket, a Toasting Pan, and an Oven Rack

Bake Mode

Uses dual heating elements to bake at temperatures up to 450°F, eliminating the need for a countertop convection or toaster oven. The included oven rack fits a 9" x 13" pan.

Air Bake Mode

Uses triple heating elements and a fan for convection baking at temperatures up to 450°F, eliminating the need for a countertop convection oven. The included oven rack fits a 9" x 13" pan.

Roast Mode

Uses dual heating elements and a fan to roast at temperatures up to 450°F, eliminating the need for a countertop convection oven. The included oven rack fits a 9" x 13" pan.

Broil Mode

Uses a grill element in the top of the oven to broil at temperatures up to 400°F, eliminating the need for a countertop toaster oven. The included oven rack fits a 9" x 13" pan.

Toast Mode

With included toasting pan combines direct heat from a toast element on the bottom of the oven and indirect heat from a grill element in the top to achieve your preferred level of browning, eliminating the need for a countertop toaster oven.

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Height:

45.40, 45.40”

centimeters, inches

45.40 cm

45.40 in

Width:

76.20, 76.20”

centimeters, inches

76.20 cm

76.20 in

Depth:

32.38, 32.38”

centimeters, inches

32.38 cm

32.38 in

Download Specs Sheet

Download Dimension Guide

Certifications

ADA Compliant

No, No

CEC Listed

Yes

CUL

Prop 65 & AB-1200

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Regulated Material Disclosures

Yes

Oven Cavity Details

Convection

Yes

Convection Power

1,400 w, 1,400 w, 1,400 w, 1,400 w

Cooking Power

950 w, 950 w, 950 w, 950 w, 950 w, 950 w, 950 w, 950 w

Ventilation Details

Blower Type

Centrifugal

CFM Motor Class

400

Duct Direction

Vertical or Horizontal

Duct Outlet Size

3.25 W x 10 H cm, 3.25 W x 10 H cm, 3.25 W x 10 H in, 3.25 W x 10 H in

Duct Type

Rectangular

Fan Speed Indicator

Yes

Filters

Charcoal Recirculating Filter, Dishwasher Safe Grease Filter

Night Light

Yes

Vent Fan Location

Back

Ventilation Type

Updraft

Venting

Exterior or Recirculating

Dimensions

Capacity

31.13 l, 1.1 cu. ft.

Cutout Depth Max

33.02 cm, 33.02 cm, 13 in, 13 in

Cutout Depth Min

32.38 cm, 12-3/4 in

Cutout Height Max

45.72 cm, 18 in

Cutout Width Max

76.20 cm, 30 in

Depth

32.38 cm, 32.38 cm, 12-3/4 in, 12-3/4 in

Depth Closed Excluding Handles

32.38 cm, 32.38 cm, 12-3/4 in, 12-3/4 in

Depth Closed Including Handles

32.38 cm, 32.38 cm, 12-3/4 in, 12-3/4 in

Depth Excluding Doors

32.38 cm, 32.38 cm, 12-3/4 in, 12-3/4 in

Depth With Door Open 90 Degree

105.41 cm, 105.41 cm, 41-1/2 in, 41-1/2 in

Gross Weight

37.65 kg, 37.65 kg, 83 lbs, 83 lbs

Height

45.40 cm, 45.40 cm, 17-7/8 in, 17-7/8 in

Interior Depth

27.94 cm, 27.94 cm, 11 in, 11 in

Interior Height

23.18 cm, 23.18 cm, 9-1/8 in, 9-1/8 in

Interior Width

46.04 cm, 46.04 cm, 18-1/8 in, 18-1/8 in

Net Weight

33.61 kg, 33.61 kg, 74-1/10 lbs, 74-1/10 lbs

Width

76.20 cm, 76.20 cm, 30 in, 30 in

Details

Blower Type

Centrifugal

Cavity Finish

Stainless

Clock

Yes

Convection Power

1,400 w, 1,400 w, 1,400 w, 1,400 w

Door Opening Direction

Left

Door Release

Touch to Open

Grill

Yes

Microwave Interior Light

LED

Microwave Type

Over-the-Range

Number of Microwave Racks

Turntable

N/A

Turntable Diameter Size

0.00 cm, 0 in

Work Surface Light

LED

Controls

Control Location

Bottom

Control Type

Electronic Touch

Convenience Cooking Controls

Yes

Display Color

Full Color

Electronic Display Type

LCD

Microwave Selections

Add 30 Seconds, Air Fry, Auto Cook, Beverage, Convect, Cook Power, Cook Time, Cook/Start, Crisp, Defrost, Dinner Plate, End of Cycle Signal, Fresh Vegetable, Keep Warm, Languages - English/French, Off/Cancel, Pizza, Popcorn, Potato, Reheat, Soften/Melt, Sound On/Off, Soup, Steam Clean, Time Cook, Timer, So

Number of Keypads

Number of Power Levels

Number of Sensor Control Keypads

Number of Vent Speeds

One Touch Cooking

Yes

Smart Compatibility

Connectivity

Amazon Alexa, Google Assistant

Smart Appliance

Yes

Works With

App, Remote Access, Voice Controlled, WiFi

Microwave Details

Door Release

Touch to Open

Grill

Yes

Grill Power

1,700 w, 1,700 w, 1,700 w, 1,700 w

Microwave Interior Light

LED

Sensor Cooking

Yes

Exterior Details

Cabinet Color

White

Door Opening Direction

Left

Handle Color

N/A

Electrical

Amps

Power Cord Included

Yes

Volts

120

Watts

Rated 5 out of 5 by Cook 1 from New and different I love the multiple features, still trying to use them all

Date published: 2025-01-03

Rated 3 out of 5 by MikeJKB from Mixed Review I’ve had this microwave for several months and also have had the random power off message with no other electrical devices in my home indicating power off. Great looking microwave with many features but the removable rack does limit space and it’s not adjustable. Hopefully now that I hooked it up to WiFi it can reset the clock/date itself after its monthly power loss.

Date published: 2024-11-22

Rated 1 out of 5 by Sad stan from Right out of the box constantly have to set the clock won't keep time,then so far a paragraph that tells you that the power has failed causing you to have to reset everything, leading you to have to unplug/plug in before it will let you once again RESET EVERYTHING!!!! Not pleased especially with the $1294.00 spent

Date published: 2025-04-03

Rated 1 out of 5 by Susan F. from poor customer service This is an expensive microwave. It performs its various functions, but it is the loudest exhaust I've ever owned, and is loud on low and medium as well as high. When I tried contacting Kitchenaid to find out whether this is normal or maybe a faulty installation, I got a complete run around. I had to speak to three people before being transferred to someone who could help me, and then the call dropped. I went through the same very long process and wait, and was finally told to schedule service if I wanted to but it might be on me because Kitchenaid isn't responsible for installation issues. What I really wanted to know was how loud is normal, and that information is not available. I am so frustrated that I don't think I'll ever buy another product from any of the brands of Whirlpool.

Date published: 2024-10-15

Rated 1 out of 5 by T-ANN72 from LOUSY MICROWAVE/AIR FRYER and SERVICE I bought my Over the Range Microwave Oven and took delivery on 8/10/2024. Since I purchased it, at least once a week and sometimes more it states "Power to your appliance was lost. You may need to check on your food in your appliance. Press CONFIRM to set time and date". Last week I went onto the Kitchen Aid website and sent an email regarding this issue. I still have not heard a word. THIS PRODUCT IS UNDER WARRANTY AND SOMEONE NEEDS TO ADDRESS MY ISSUE BEFORE THIS PROBLEM CAUSES A FIRE OR SOMETHING.

Date published: 2024-10-02
