30" Retractable Downdraft Ventilation System

Model: KXD4630YSS

Model: KXD4630YSS

30" Retractable Downdraft Ventilation System

Name: 30" Retractable Downdraft Ventilation System
Brand: KitchenAid
SKU: KXD4630YSS
Price: 1376.0 USD
Availability: InStock
Rating: 2.97 (60 reviews)

KXD4630YSS

Model: KXD4630YSS

Hurry! Limited Time Offer Ends Soon

Compare

DOES IT FIT IN YOUR SPACE?

Use your camera to view in your room.

Compare

Create an Account

Exclusive Offers
Free Returns for 60 Days
Free Delivery, Install & Haul-Away
Price Matching^‡‡

See Details

Key Features

•

Retractable Downdraft Design

•

65,000 BTU Rating

•

4-Speed Slide Control

•

13.5" Rise

•

Mesh Filters

Color:

Stainless Steel

Hurry! Limited Time Offer Ends Soon

Please enter a valid email You have already submitted your email.

in.stock.toast.message

to check availability in your area.

Estimating In-Home Delivery for ...

Earliest Estimated In-Home Delivery :

Protection Plans (Optional)

Flexible Appliance Protection Plans for Your Needs Learn More

Limited Standard Warranty included

Accessories & Attachments

Items frequently bought together

Vent Hood Downdraft Top Trim

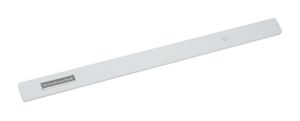

Cooktop Trim Kit, White

Overview

Product Description

30" Retractable Downdraft Ventilation System

This 30-inch retractable downdraft vent rises 13.5 inches to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 585 CFM Motor Class* ventilation system has the power to provide effective venting for most cooktops or ranges. The system is reversible to help fit in the cabinet space under the vent. Performance varies based on installation. Resources available at AHAM.org

Retractable Downdraft Design

Provides a sleek, integrated ventilation solution by remaining flush with the countertop until needed, then rising high above the cooktop surface when turned on.

65,000 BTU Rating

Allows for installation above most 36 or 30-inch cooktops, including some commercial-style cooking surfaces.

13.5" Rise

Enhances overall capture above the cooktop
for more effective venting, particularly over tall stockpots.

Mesh Filters

Help keep the kitchen environment fresh and also provide proper filtration of grease and odors to help reduce contact with ceilings and countertops.

Additional Features

4-Speed Slide Control

Makes it easy to select and adjust fan speed depending on your ventilation requirements.

Reversible Motor Box

Lets you create versatile installation options by allowing the motor box to be installed on either side of the downdraft to free up the space beneath the cooking surface.

30" Retractable Downdraft System

This 30-inch retractable downdraft vent rises 13.5 inches to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 585 CFM Motor Class ventilation system has the power to provide effective venting for most cooktops. The vent system is reversible to help fit in the cabinet space under the vent.

Height:

72.39, 28-1/2”

centimeters, inches

72.39 cm

28-1/2 in

Width:

68.58, 27”

centimeters, inches

68.58 cm

27 in

Depth:

30.80, 12-1/8”

centimeters, inches

30.80 cm

12-1/8 in

Download Specs Sheet

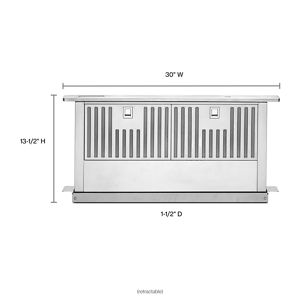

Download Dimension Guide

Certifications

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Dimensions

Common Size

76.20 cm, 30 in

Depth

30.80 cm, 12-1/8 in

Gross Weight

42.18 kg, 93 lbs

Height

72.39 cm, 28-1/2 in

Net Weight

30.00 kg, 66-7/50 lbs

Width

68.58 cm, 27 in

Details

Blower Type

Centrifugal

Hood Type

Retractable Downdraft

Material

Stainless Steel

Controls

Control Location

Hidden

Control Type

Push Button

Number of Vent Speeds

Ventilation Details

CFM Motor Class

585

Duct Direction

Vertical

Duct Outlet Size

15.24 cm, 6 in

Duct Type

Round

Filters

Grease Filters

Venting

Exterior

Electrical

Amps

Volts

120

Rated 5 out of 5 by TjS1 from A winner! Just finished installing our new downdraft fan along with new KitchenAid gas cooktop. Everything about the transaction has been great; timely shipping, helpful and courteous delivery team, good looking fan fit and finish. Clearly designed to work well with a gas cooktop without distrupting the flame, yet very effective at removing steam and odor.

Date published: 2024-02-13

Rated 5 out of 5 by Debbie12345 from Very happy with it The vents raise high enough to pull in the smell but not affect the flames of the burners (an issue we had with previous downdraft). A bit noisy but looks nice and is easy to clean.

Date published: 2022-02-06

Rated 5 out of 5 by Paul 5677 from After repair works great I installed this downdraft unit myself, Fairly straight forward until I powered unit befor final installation. Back would pop up but fan would not come on. After waithing 6 days to get a tech out to look at it he found out that at the factory the switch to the fan motor was not connected. Quality control could be better. It was very frustrating to have to wait another week to get our kitchen back to being able to use it.

Date published: 2022-02-04

Rated 5 out of 5 by Mj1953 from Sleek and efficient In our newly remodeled kitchen we wanted an efficient way to remove cooking odors and steam from our cooking surface but didn’t wanted overhead hood. This appliance accomplishes that very efficiently & good looking too.

Date published: 2019-10-11

Rated 5 out of 5 by Anonymous from Love this downdraft!! We bought this downdraft, and had it installed a few weeks ago, and really like it!! It works great, and is so much taller than our last one, so it doesn't such the burner flame out!!

Date published: 2017-11-10

Rated 5 out of 5 by MJ from Makes our kitchen so open! Great to not have a huge vent hood. Allows us to have the cooktop on the island.

Date published: 2017-07-20
