30" Slide-Out Hood

Model: KXU2830JSS

Model: KXU2830JSS

30" Slide-Out Hood

Name: 30" Slide-Out Hood
Brand: KitchenAid
SKU: KXU2830JSS
Price: 1196.0 USD
Availability: OutOfStock
Rating: 3.4 (20 reviews)

KXU2830JSS

Model: KXU2830JSS

Hurry! Limited Time Offer Ends Soon

Compare

DOES IT FIT IN YOUR SPACE?

Use your camera to view in your room.

Compare

Key Features

•

65,000 BTU Rating

•

4-Speed Electronic Touch Control With LED Display

•

Power Boost Function

•

Two LED Lights

•

Convertible Ventilation System

Color:

Stainless Steel

Hurry! Limited Time Offer Ends Soon

Please enter a valid email You have already submitted your email.

in.stock.toast.message

to check availability in your area.

Estimating In-Home Delivery for ...

Earliest Estimated In-Home Delivery :

product.tray.major.arrival.date.unavailable.label

Protection Plans (Optional)

Flexible Appliance Protection Plans for Your Needs Learn More

Limited Standard Warranty included

Accessories & Attachments

Items frequently bought together

Overview

Product Description

30" Slide-Out Hood

This slide-out ventilation system remains flush with surrounding cabinets for a sleek, integrated appearance when not in use. A stunning glass canopy extends from beneath the cabinetry when turned on. Electronic controls and LED lights make the vent system easy to use.

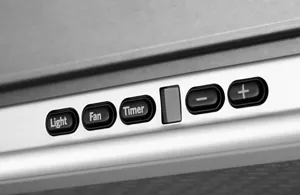

4-Speed Electronic Touch Control With LED Display

Provides visual confirmation of your ventilation selections, settings, and filter status. Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.

Two LED Lights

Provide energy efficient operation with brighter, more natural light that increases visibility over the cooking surface.

Convertible Ventilation System

Allows you to install this ventilation system without direct venting to the outside and features a charcoal filter to help keep the recirculated air fresh.

Auto On Function

Helps ensure effective ventilation performance by automatically starting the vent at the last used speed when it extends above the cooking surface.

Additional Features

65,000 BTU Rating

Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.

Power Boost Function

Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.

Flush to Cabinetry

Provides a sleek, unobtrusive appearance by remaining flush with cabinets when the vent is not in use.

5-Minute Boost Function

Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively remove steam, grease, and odors from the air.

Removable Filters

help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.

330 CFM Motor Class Ventilation System

Helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.

Width:

76.20, 30”

centimeters, inches

76.20 cm

30 in

Depth:

27.94, 11”

centimeters, inches

27.94 cm

11 in

Download Specs Sheet

Download Dimension Guide

Certifications

Energy Star Qualified

Energy Star® Qualified

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Star K Certified

Ventilation Details

Auto Function

Auto On

CFM Motor Class

330

Damper Included

Yes

Duct Direction

Vertical

Duct Outlet Size

15.24 cm, 6 in

Duct Type

Round

Exhaust Vent Location

Top

HVI (CFM HS Horizontal)

N/A

HVI (CFM HS Vertical)

330

Lighting Control Type

Push Button

Night Light

Number of Task Light Settings

Task Light Type

LED

Task Lighting

Yes

Vent Fan Location

Back

Vent Material

Plastic

Venting

Exterior or Recirculating

Dimensions

Canopy Height

33.27 cm, 13-1/10 in

Common Size

76.20 cm, 30 in

Depth

27.94 cm, 11 in

Gross Weight

17.55 kg, 38-69/100 lbs

Maximum Height

81.28 cm, 32 in

Net Weight

13.25 kg, 29-21/100 lbs

Width

76.20 cm, 30 in

Controls

Control Location

Front

Control Type

Push Button

Number of Vent Speeds

Details

Blower Type

Centrifugal

Hood Type

Under-the-Cabinet

Electrical

Amps

Power Cord Included

Volts

120

Watts

236

Rated 5 out of 5 by MASC from Looks beautiful I haven't had it installed yet but I can't wait for my kitchen to be done in order to start using this vent hood. I've being eyeing it for years and so glad I was able to purchase it even though all the appliance stores said it was .a discontinued item

Date published: 2023-07-12

Rated 5 out of 5 by Giana rose from Stove Love this stive. Cooks evenly. Large enough to accommodate all cooking pans. Oven overall is a pretty appliance.

Date published: 2022-12-22

Rated 5 out of 5 by NewKitch from Beautiful sleek look for our kitchen This hood was a wonderful addition to our new kitchen - the sleek design. It was the perfect addition for the hood. We love how the light and fan activate when it is pulled out. We've been using it 4 months and very pleased. ...I do agree with the other comment regarding reaching the controls if your short, I'm 5', but still very workable for me.

Date published: 2021-07-21

Rated 4 out of 5 by Anonymous from Good for small kitchens I bought this hood in 2014. It provides a sleek look to my small galley kitchen. When you slide the glass back under the counter the lights conveniently turn off, but I usually turn them off manually because I like the look better when the glass is extended. Also, the fan is powerful but not too noisy and the filter is easy to clean. Four stars not five b/c after 8 years of use the manual buttons are getting quirky -- it can take a few times of pressing them before they actually work. Bonus mini-review for the Kitchen Aid induction cooktop shown in the picture -- I love it.

Date published: 2022-05-14

Rated 4 out of 5 by Yves B from Dripping This is more of a question: Grease is dripping from motor. The filter is see through with very little to catch grease (Large mesh). Is a filter missing other than the metal mesh. Had to clean dripping oil from motor cage? The unit is one year old.

Date published: 2021-09-05

Rated 4 out of 5 by CharleyK from Sleak, modern range hood with a few quirks Just installed to day with an experienced buddy and took us 2.5 hours including removing old range hood, adding mounting boards to narrow hole width, and installing new hood; installation went smoothly and it operates as advertised; only quirk is that extended range hood blocks button access for short people; not a deal breaker but designer should have given button placement more thought.

Date published: 2021-05-20
