Quick start guide

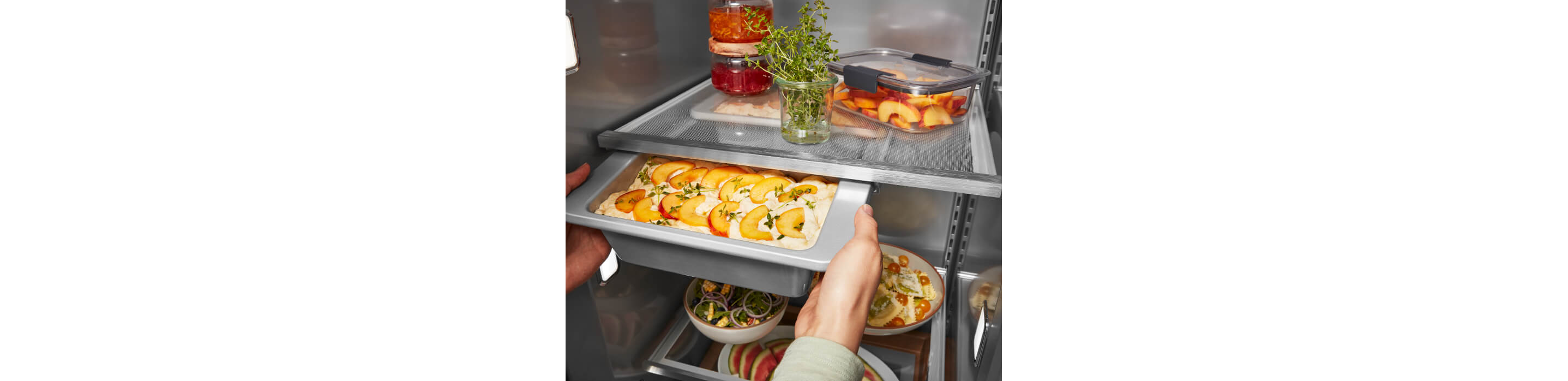

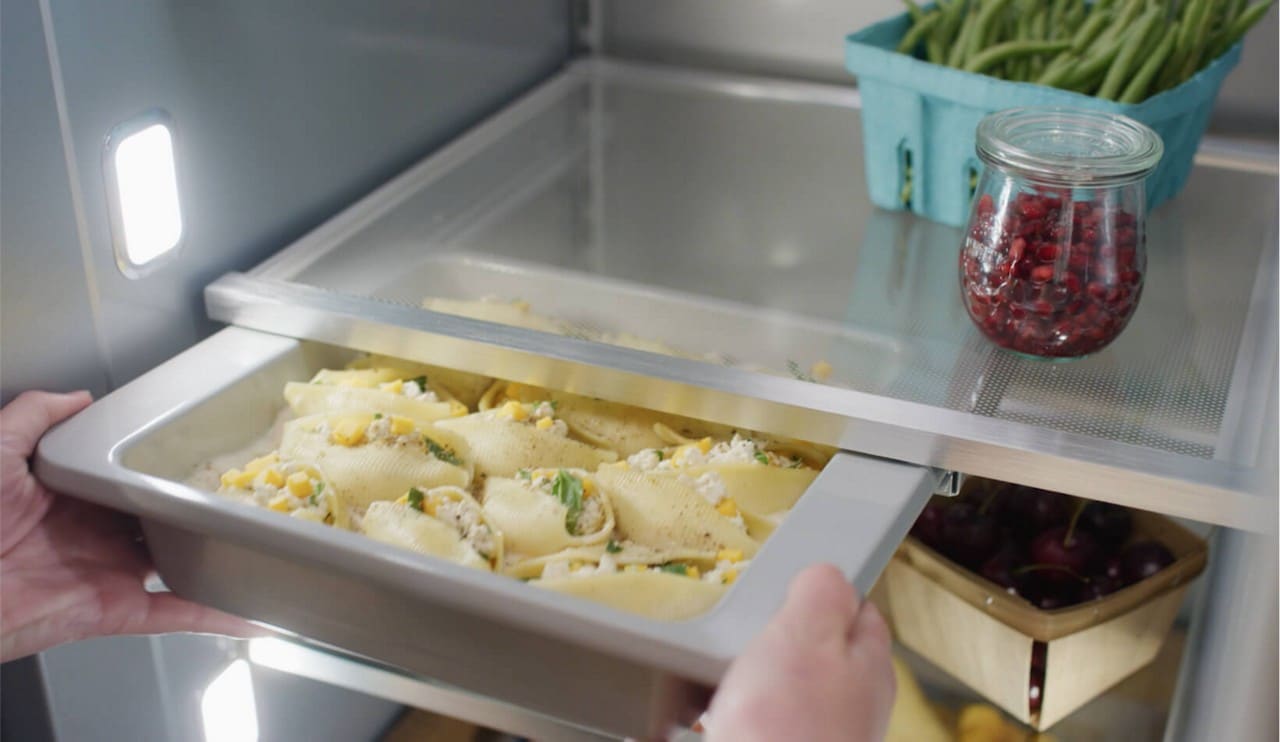

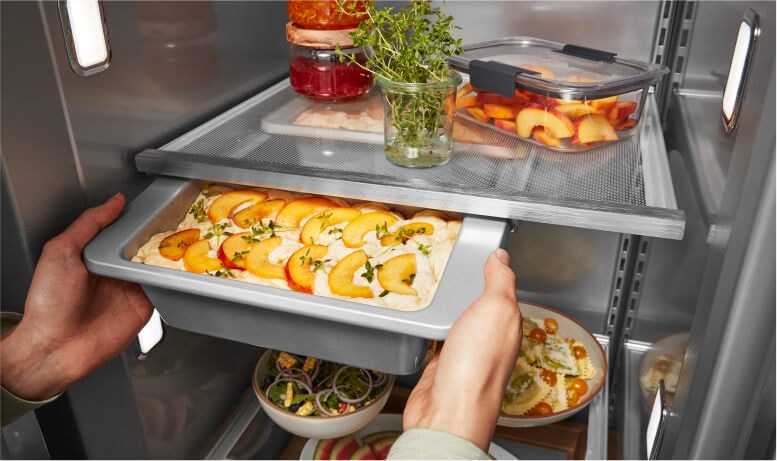

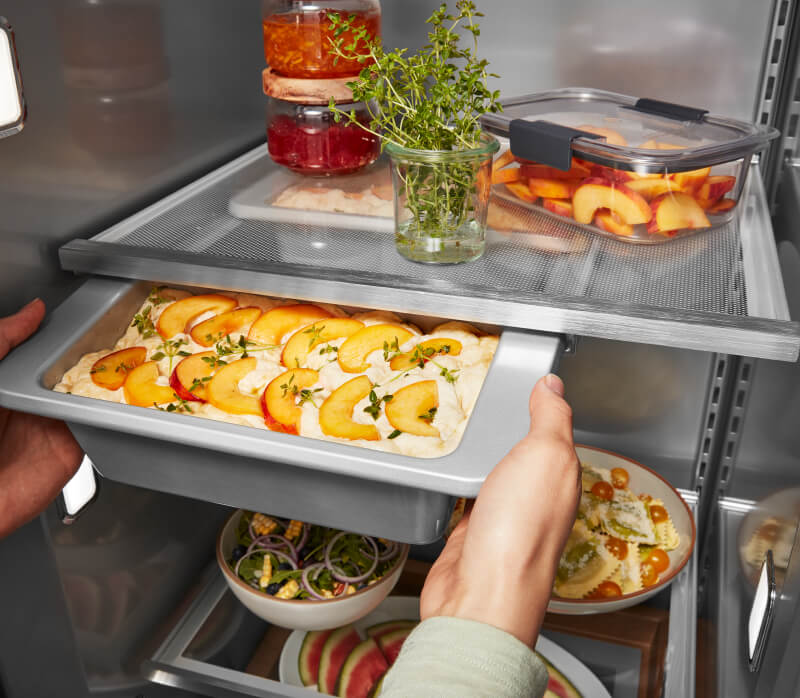

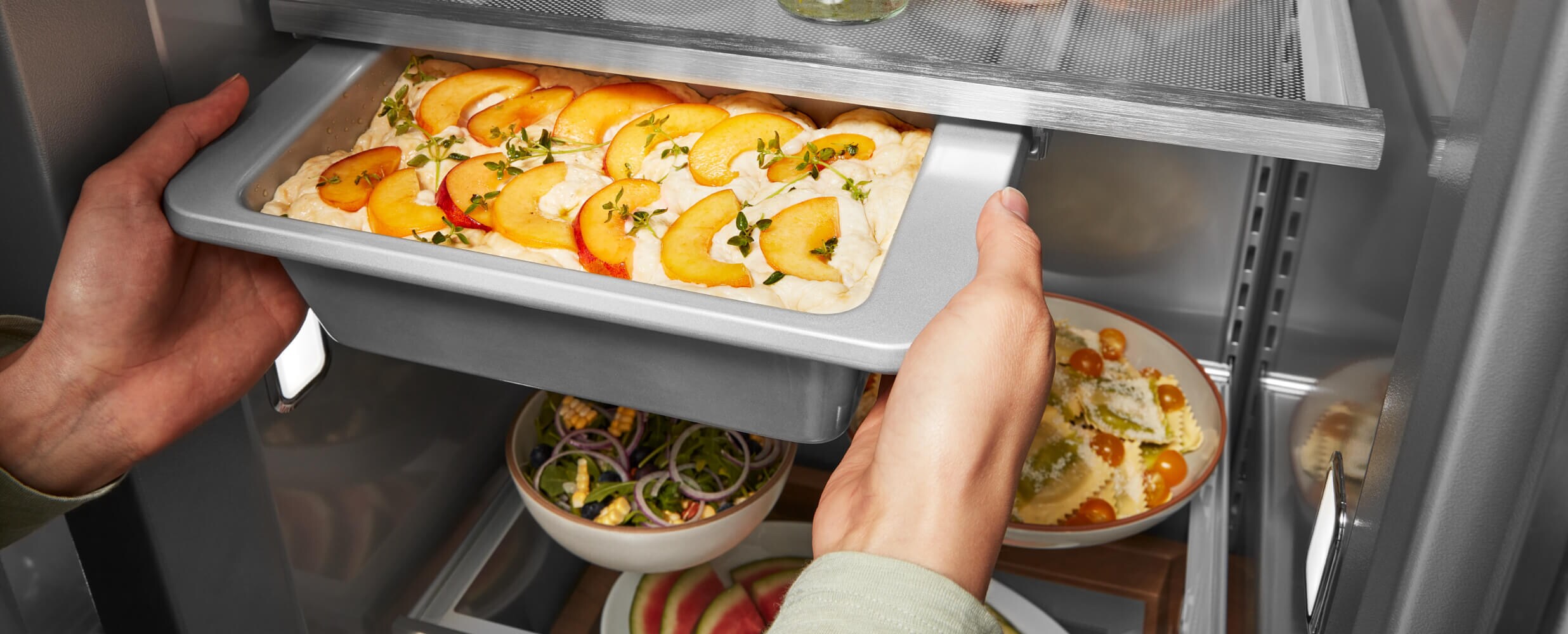

The perfect space for:

• Marinating
• Chilling
• Proofing

oven-safe

dishwasher-safe

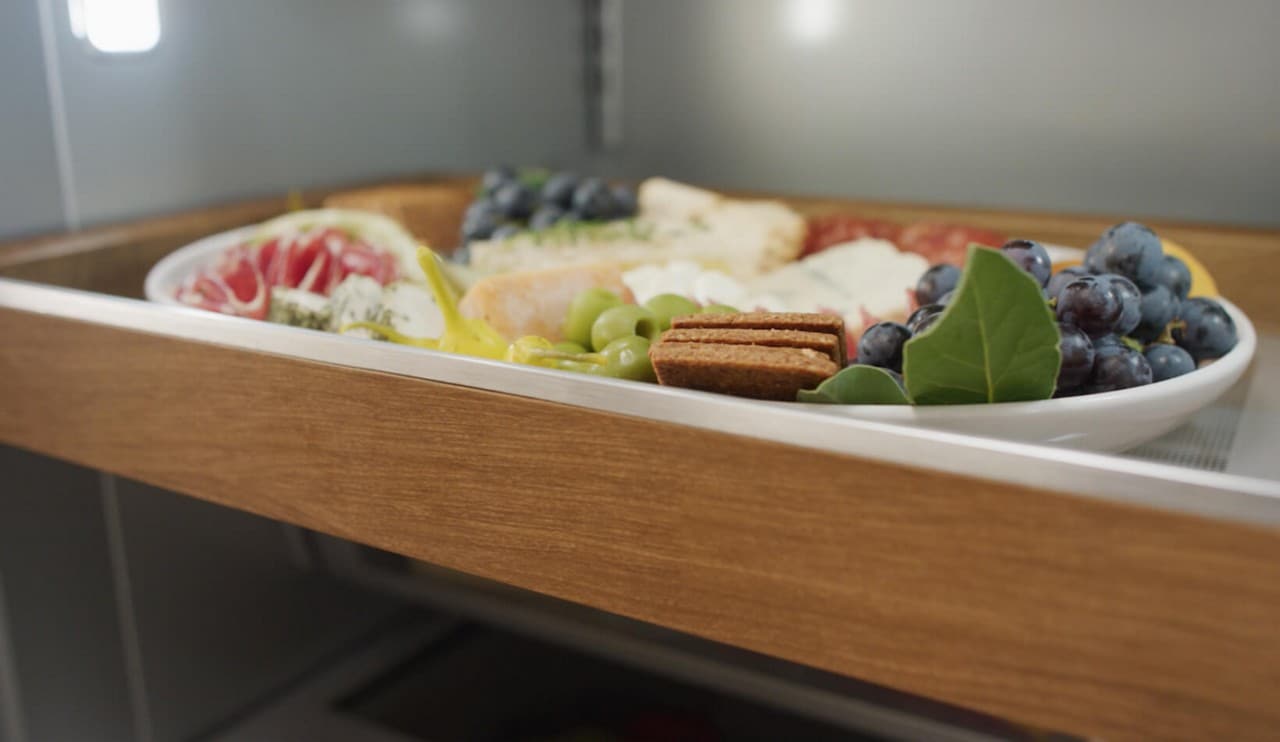

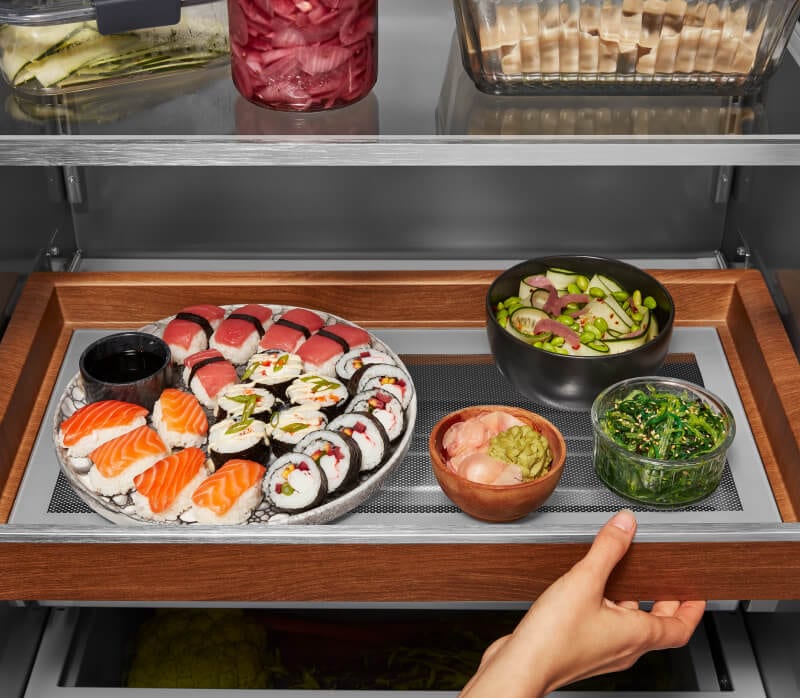

KEEPS PLATTERS AND INGREDIENTS READY TO SERVE

MOISTURE- AND STAIN-RESISTANT WOOD-LOOK FINISH

REMOVES FOR EASY CLEANING

SENSORS CONTINUOUSLY MONITOR AIRFLOW BETWEEN REFRIGERATOR AND FREEZER AND ADJUST TEMPERATURES ACCORDINGLY

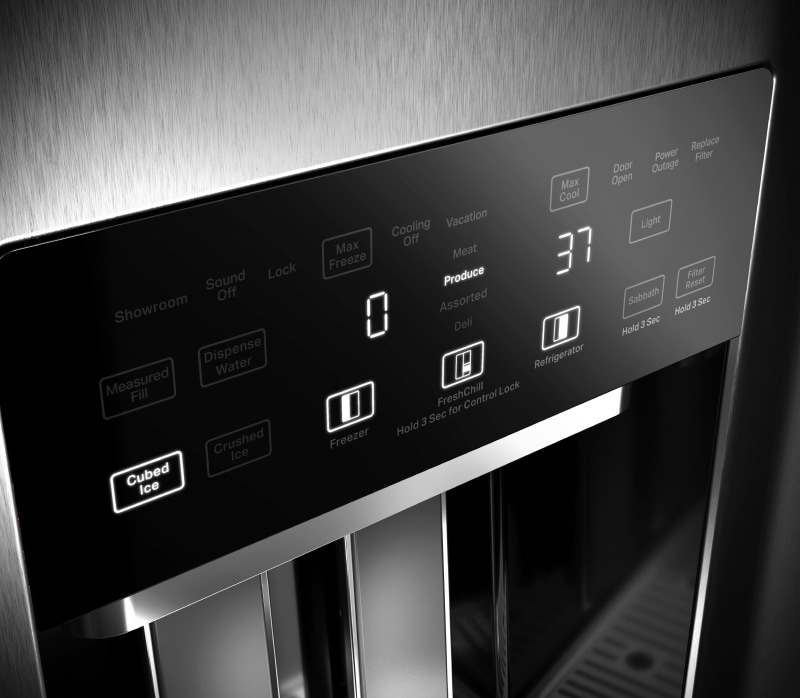

SET CELSIUS OR FAHRENHEIT

Press and hold both FRESHCHILL™ and MAX COOL for 3 seconds

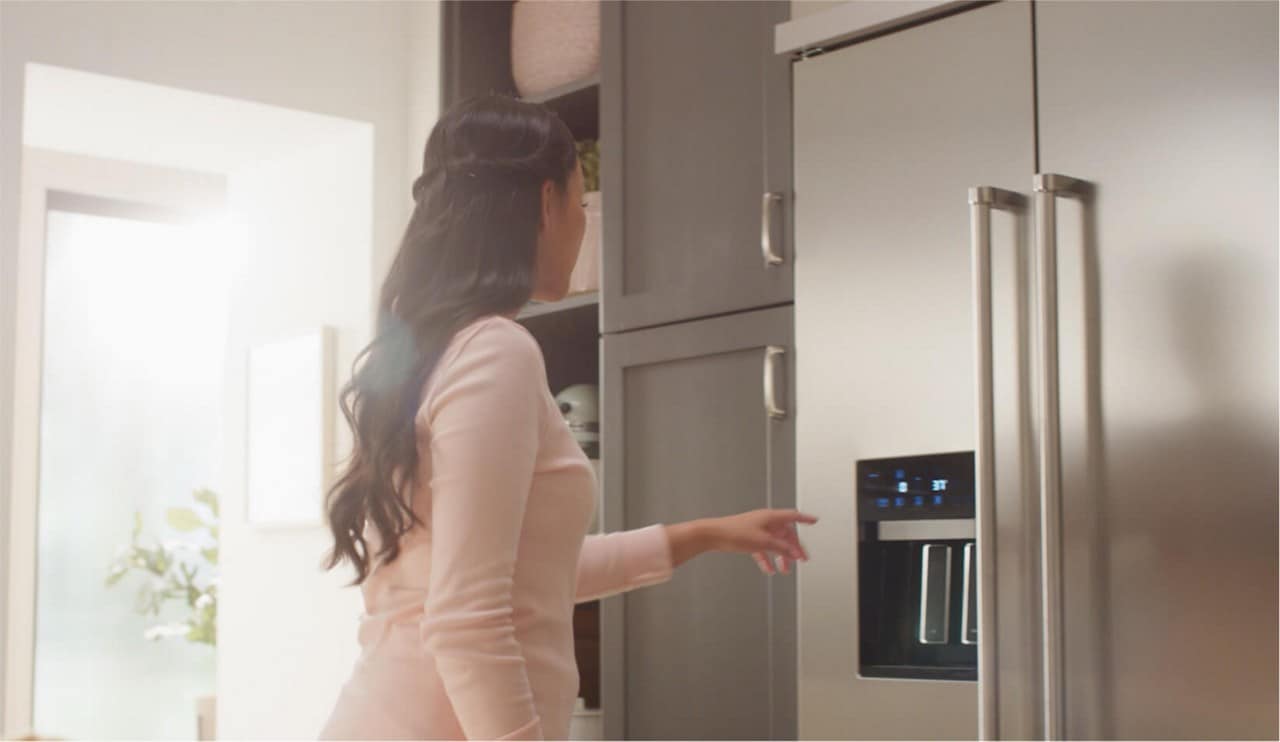

CHANGE TEMPERATURE

Press REFRIGERATOR or FREEZER to decrease temperature by one degree

After reaching the lowest temperature, it will loop up to the highest setting

SET OUNCES OR LITERS

Press and hold both FRESHCHILL™ and MAX FREEZE for 3 seconds to switch between “L” and “OZ”

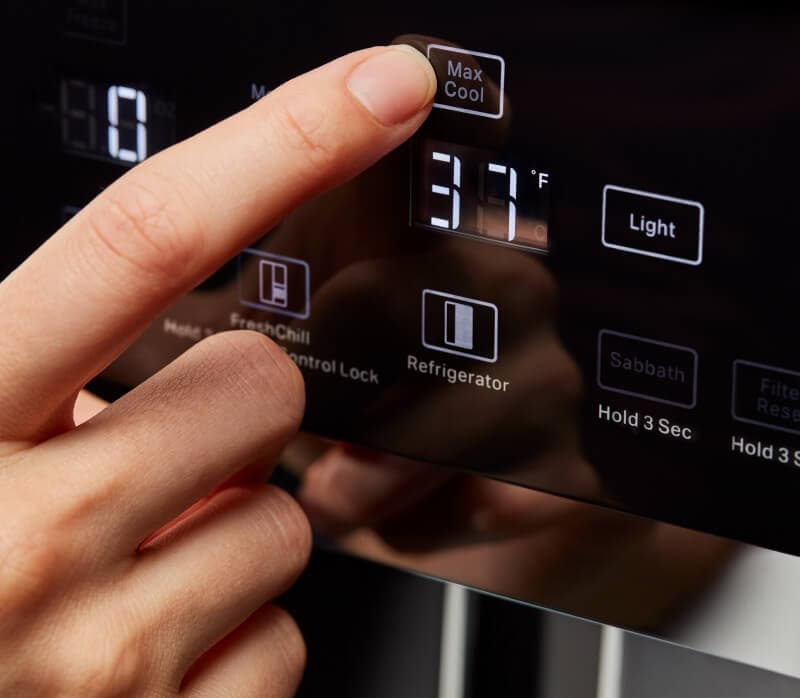

PRESS MAX COOL FOR 1 SECOND

Drops refrigerator temperature to 32°F for 24 hours

PRESS MAX FREEZE FOR 1 SECOND

Drops freezer temperature to -8°F for 48 hours

SET OUNCES OR LITERS

Press and hold both FRESHCHILL™ and MAX FREEZE for 3 seconds

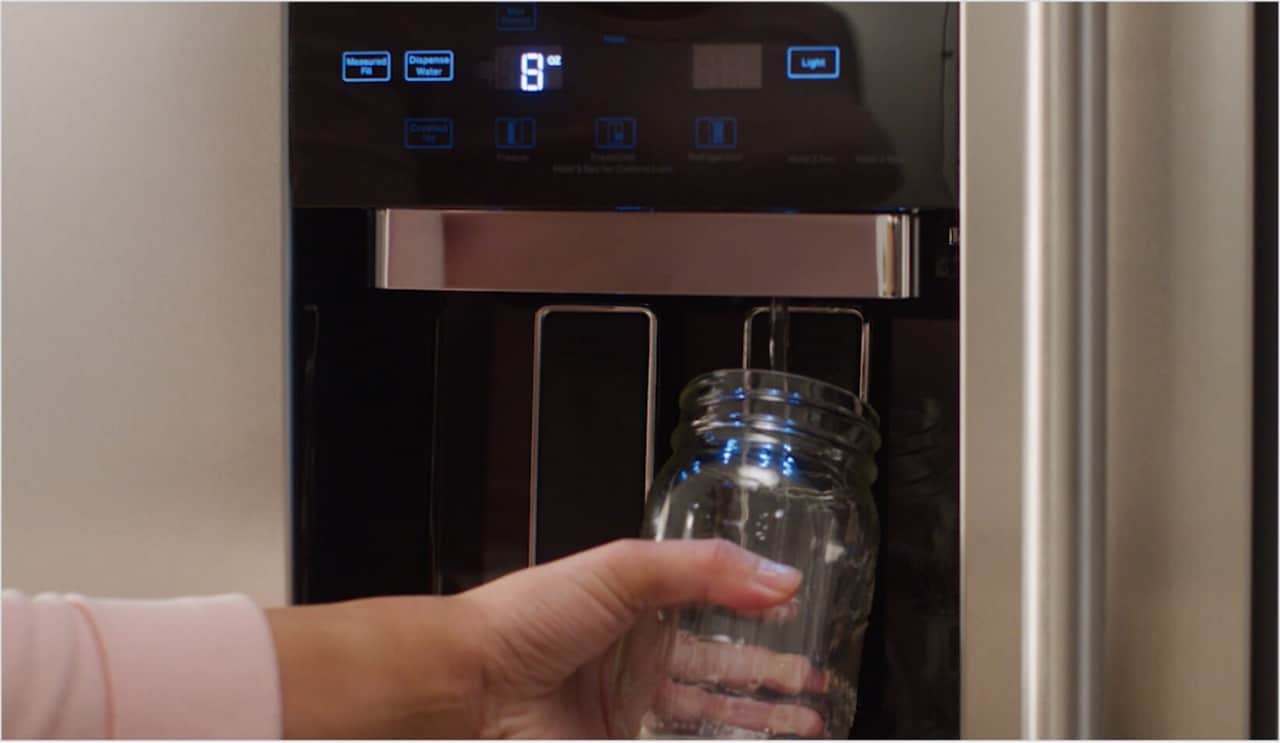

SELECT A PRESET

Press MEASURED FILL repeatedly until desired amount is reached

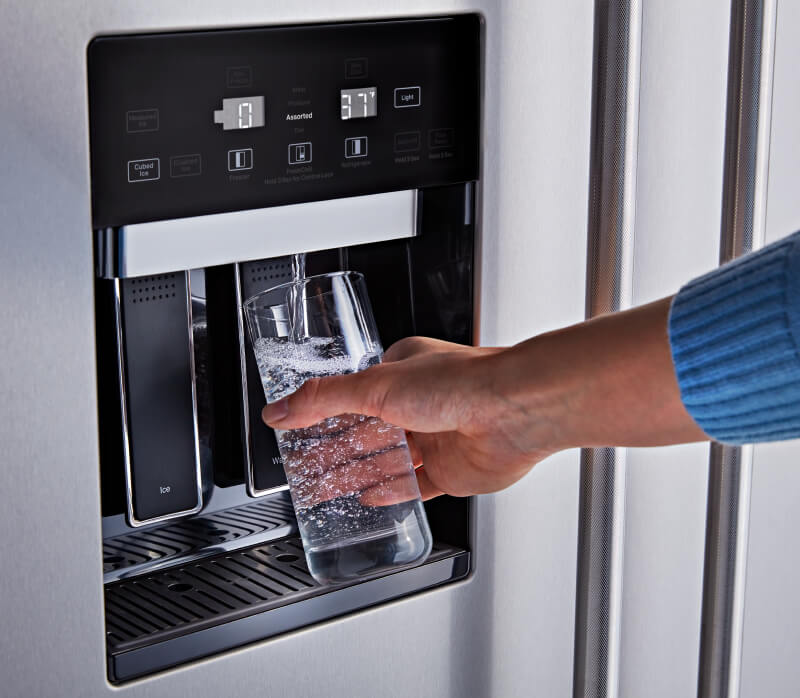

DISPENSE WATER

Press glass against dispenser pad

OR

Place glass below dispenser and press DISPENSE WATER

ADD A CUSTOM PRESET

PRESS AND HOLD MEASURED FILL FOR 3 SECONDS

FILL CONTAINER WITH DESIRED AMOUNT

PRESS MEASURED FILL FOR 1 SECOND TO SAVE

The new preset amount will blink twice once it’s saved

PRESS AND HOLD SABBATH FOR 3 SECONDS

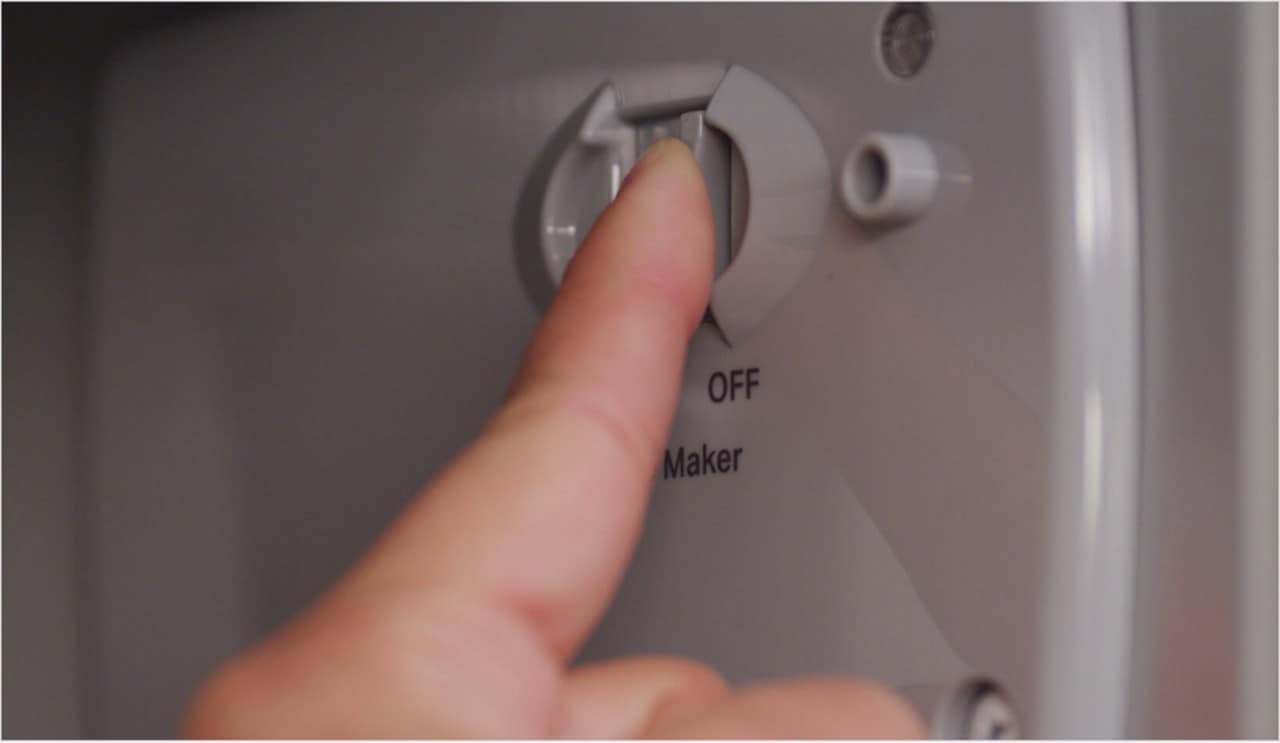

TURN OFF ICE MAKER MANUALLY

Slide control setting in freezer to OFF

PRESS AND HOLD SABBATH FOR 3 SECONDS TO TURN OFF

TURN ICE MAKER BACK ON

Slide control setting in freezer to ON

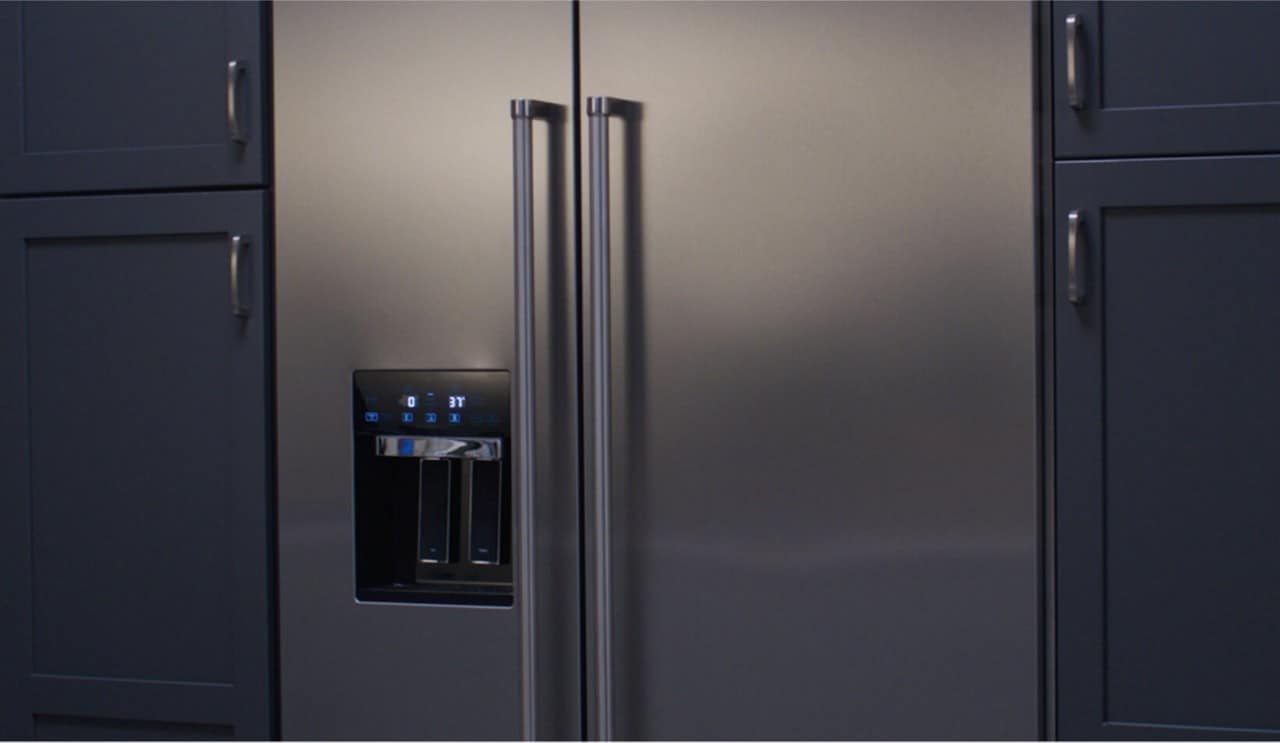

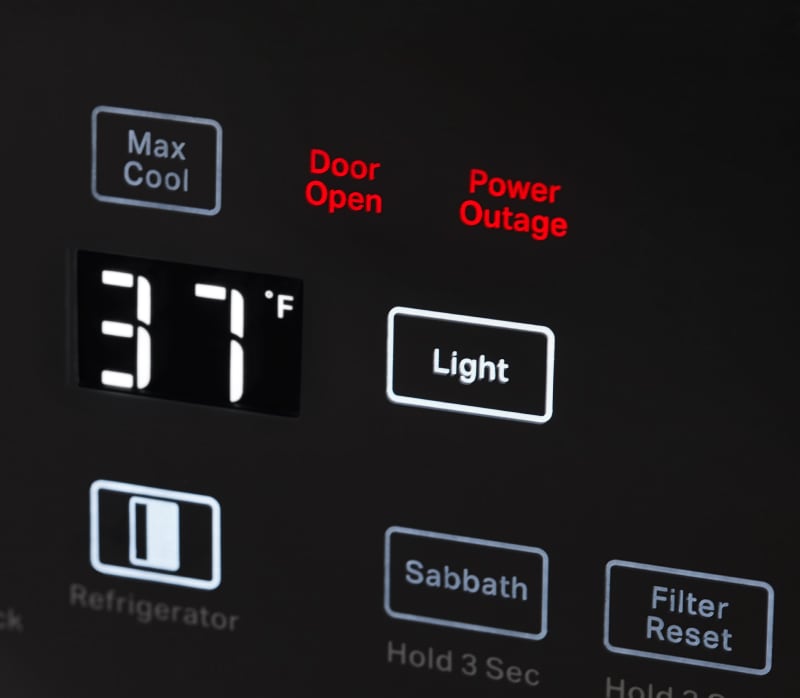

DOOR OPEN

Alarm sounds when doors are open for two minutes

Press ANY BUTTON on control panel to mute alarm

Close all doors to stop alarm

POWER OUTAGE

Alarm sounds once fridge turns on after power outage

Press ANY BUTTON on control panel to mute alarm

Press ANY BUTTON again to turn off icon

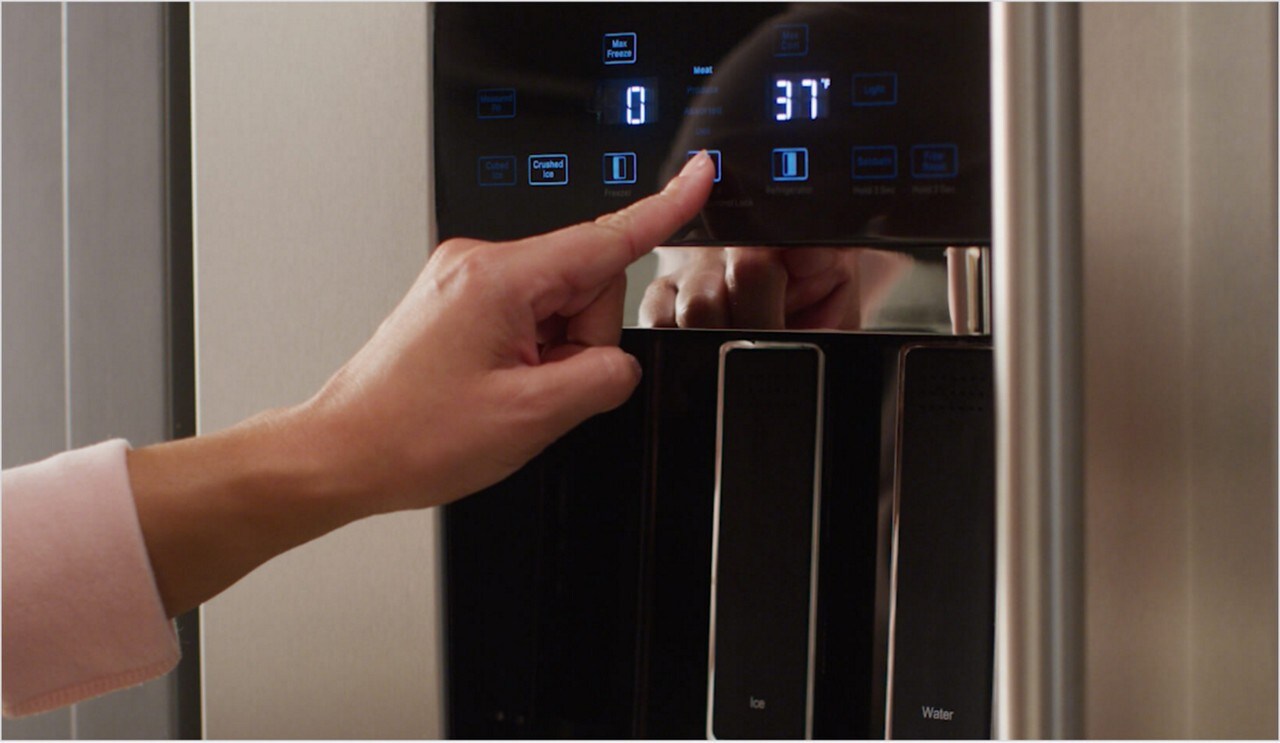

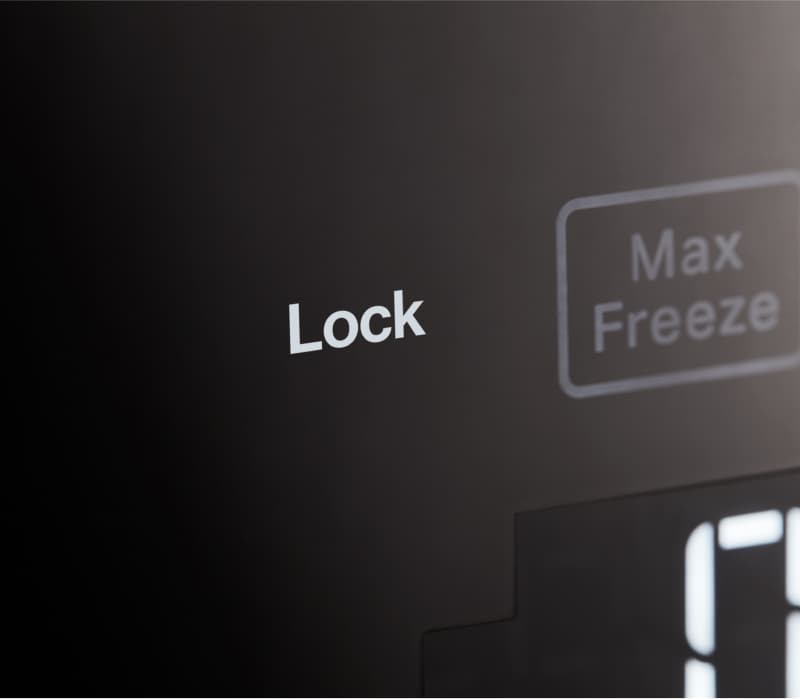

TURN CONTROL LOCK ON

Press and hold FRESHCHILL™ for 3 seconds

TURN CONTROL LOCK OFF

Press and hold FRESHCHILL™ for 3 seconds

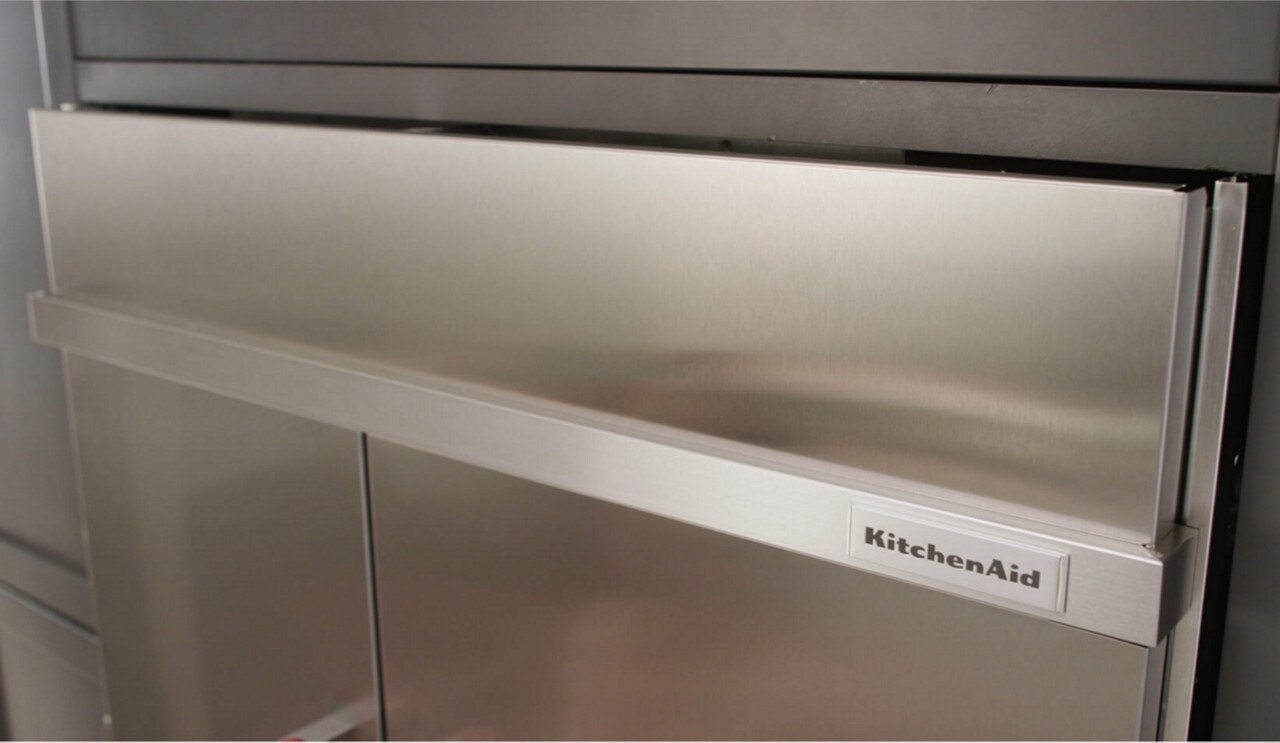

REMOVE THE TOP GRILLE COVER

Pull the bottom corners out and lift up over the mounting pins

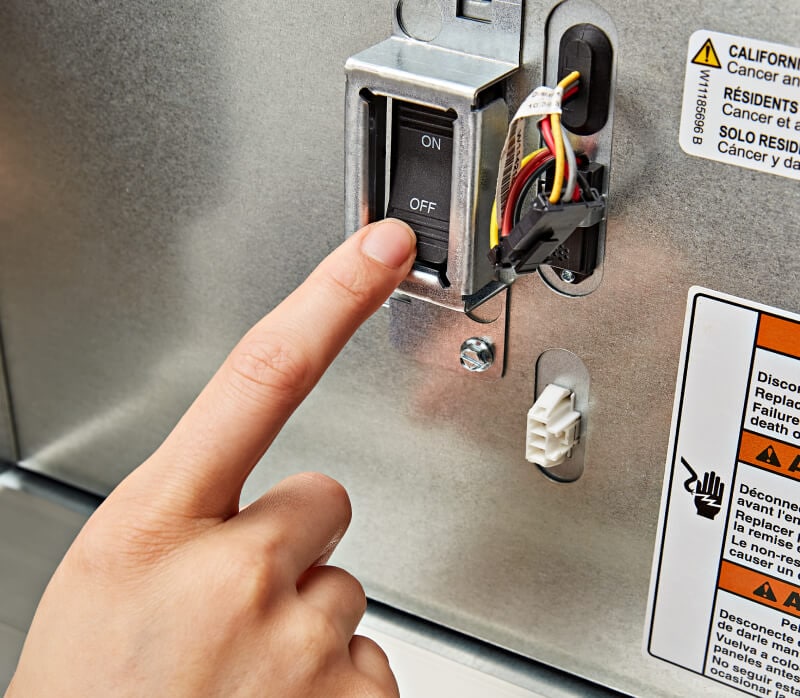

TURN POWER SWITCH OFF

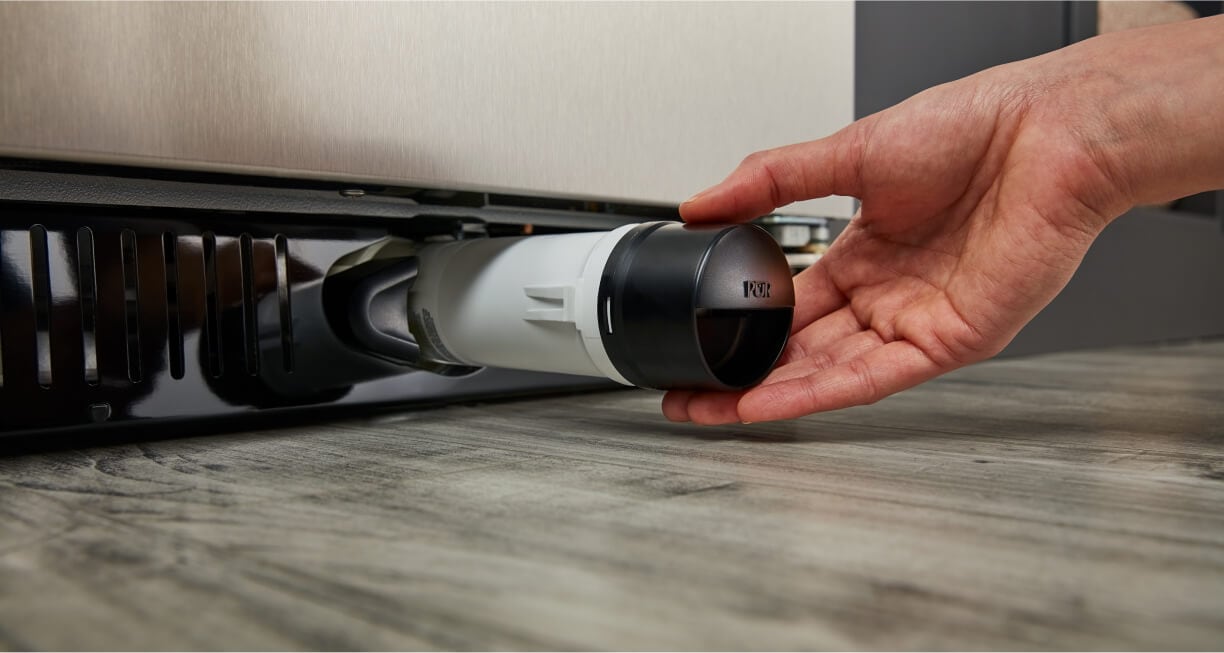

PRESS EJECT AND PULL FILTER STRAIGHT OUT

There will be water in the filter so spilling may occur

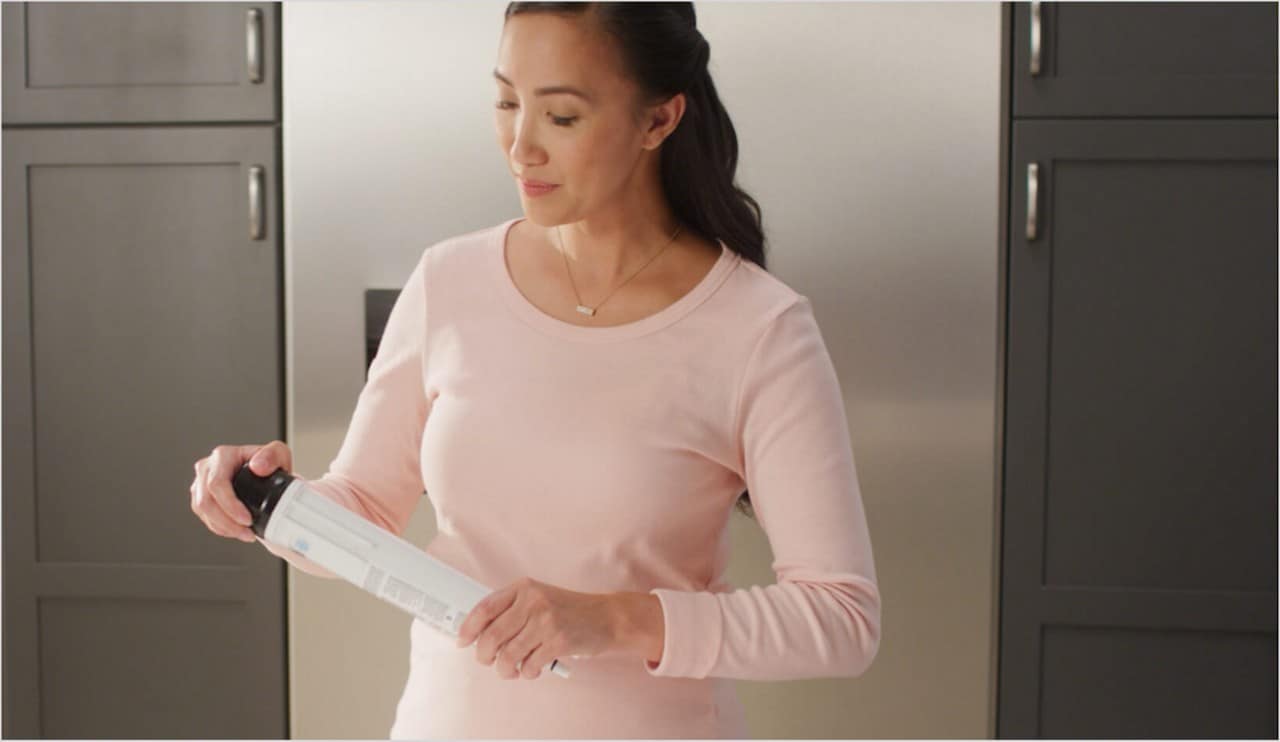

TRANSFER CAP TO NEW WATER FILTER

Remove the cap by turning counterclockwise

Align the cap’s ridge with the arrow on the new filter, and turn cap clockwise until it snaps into place

CAREFULLY REMOVE COVERS FROM O-RINGS

PUSH NEW FILTER INTO OPENING UNTIL EJECT BUTTON POPS BACK OUT

PRESS AND HOLD FILTER RESET BUTTON UNTIL ALERT CLEARS

PRIME FILTER BEFORE USING

Dispense and discard 3 gallons of water and the next 3 batches of ice, then your new filter will be ready for use

TURN POWER OFF

Remove the top grille cover and flip the power switch to OFF

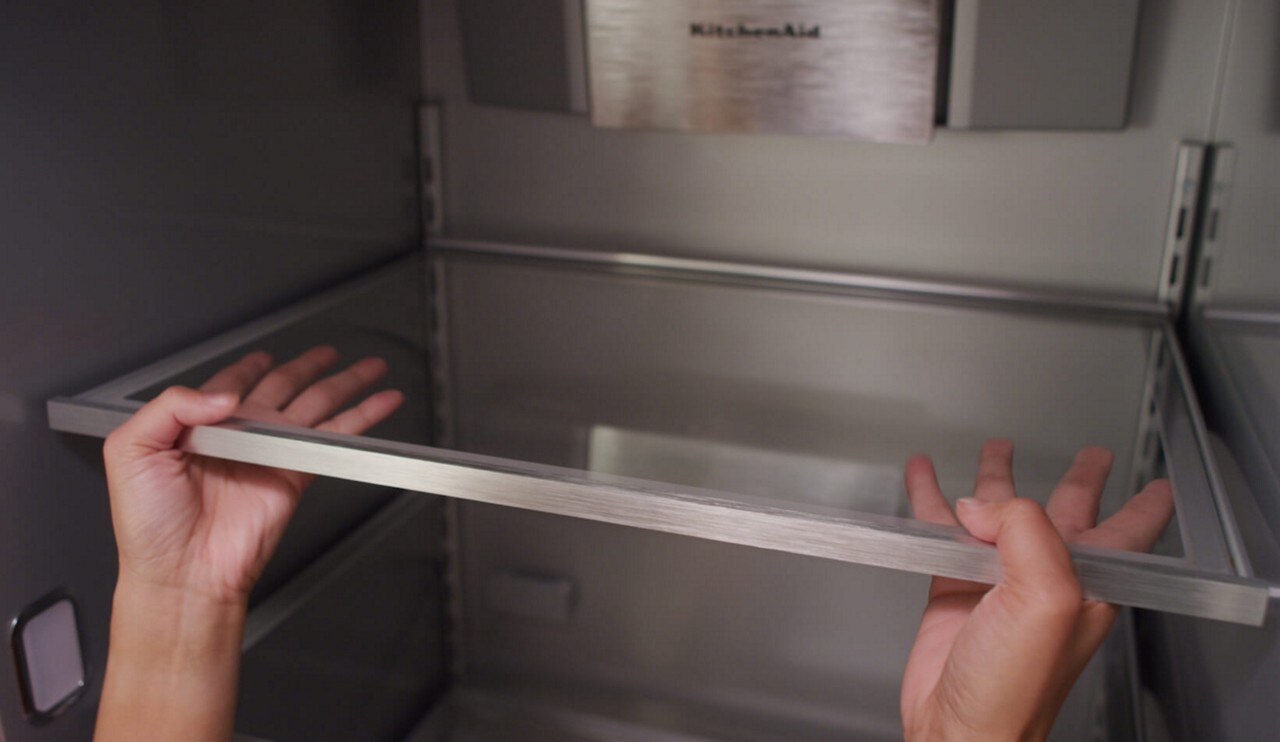

Take out ALL REMOVABLE PARTS

• Shelves
• Door bins
• Sliding storage tray

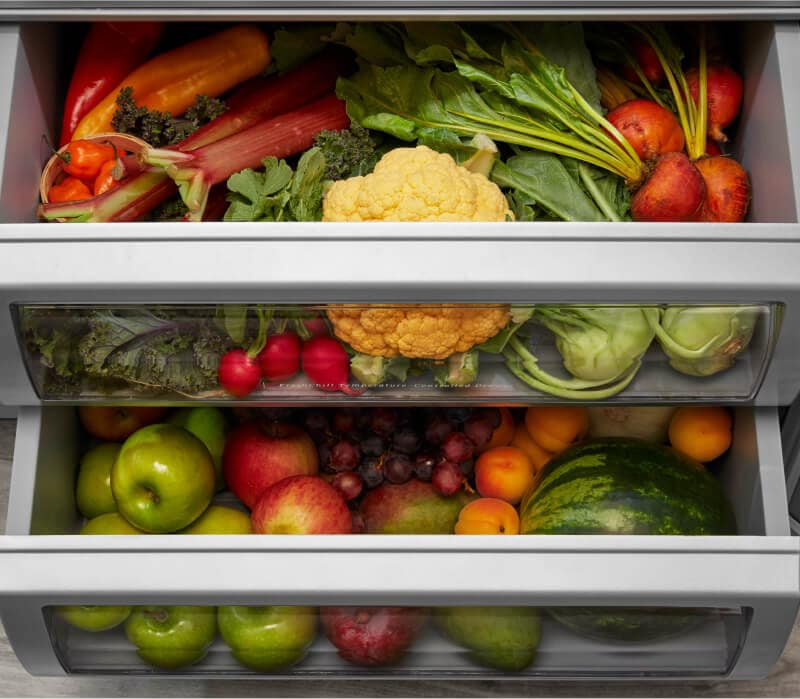

• SatinGlide^® drawers
• Ice bin

Be careful not to bump any of the glass materials while cold or they may shatter

WAIT UNTIL INTERIOR PARTS ARE AT ROOM TEMPERATURE

HAND WASH WITH SPONGE or CLOTH AND MILD DETERGENT IN WARM WATER

RINSE AND DRY INTERIOR PARTS

HAND WASH FRIDGE INTERIOR WITH WARM WATER & BAKING SODA MIXTURE

2 tbs baking soda to 1 qt of water

REPLACE INTERIOR PARTS

TURN POWER ON

Flip the power switch to ON and replace top grille cover

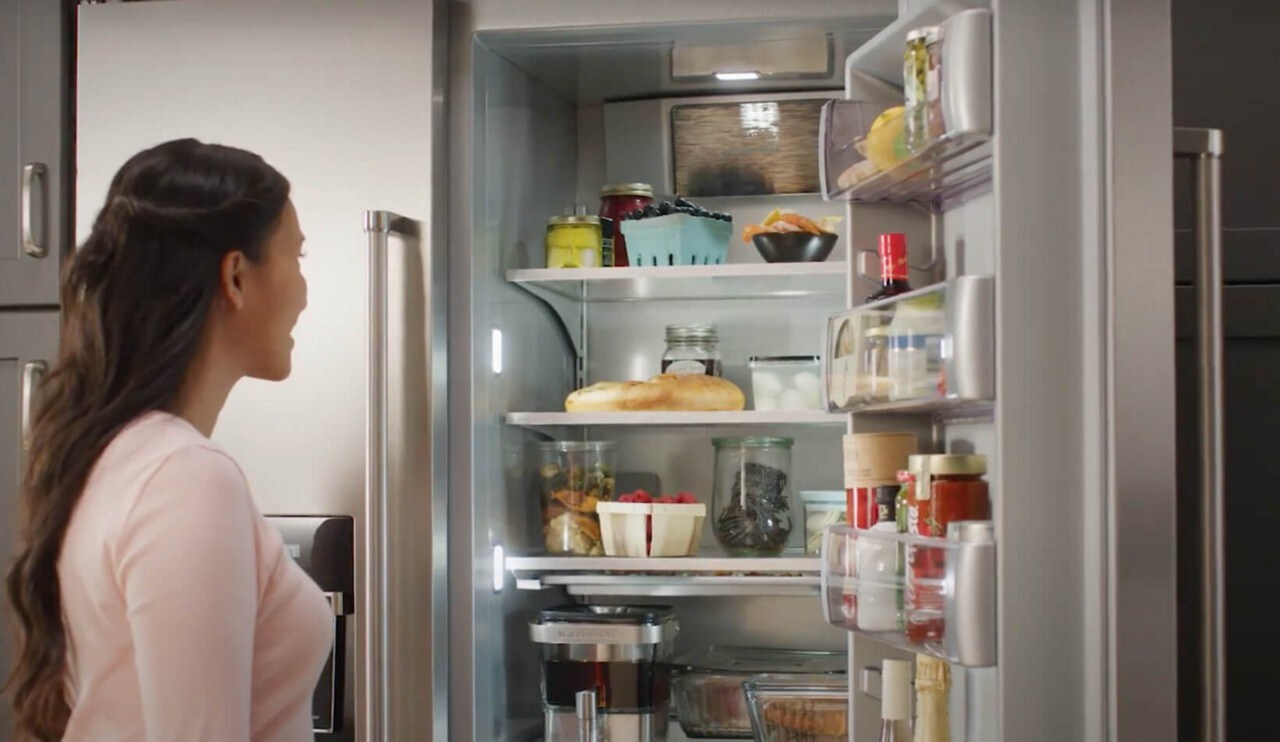

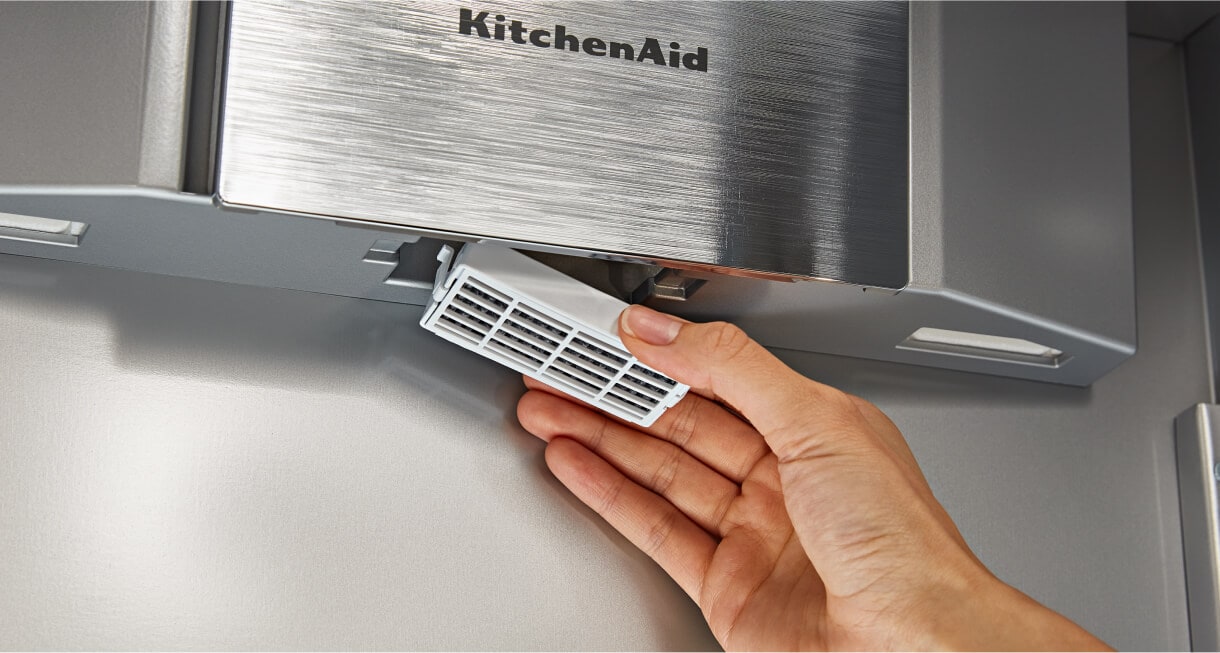

SQUEEZE SIDES OF EXPIRED FRESHFLOW™ AIR FILTER TO PULL OUT

DISCARD EXPIRED FILTER

SNAP NEW FRESHFLOW™ AIR FILTER INTO PLACE

PRESS AND HOLD FRESHCHILL™ for 3 seconds TO DEACTIVATE DISPENSER

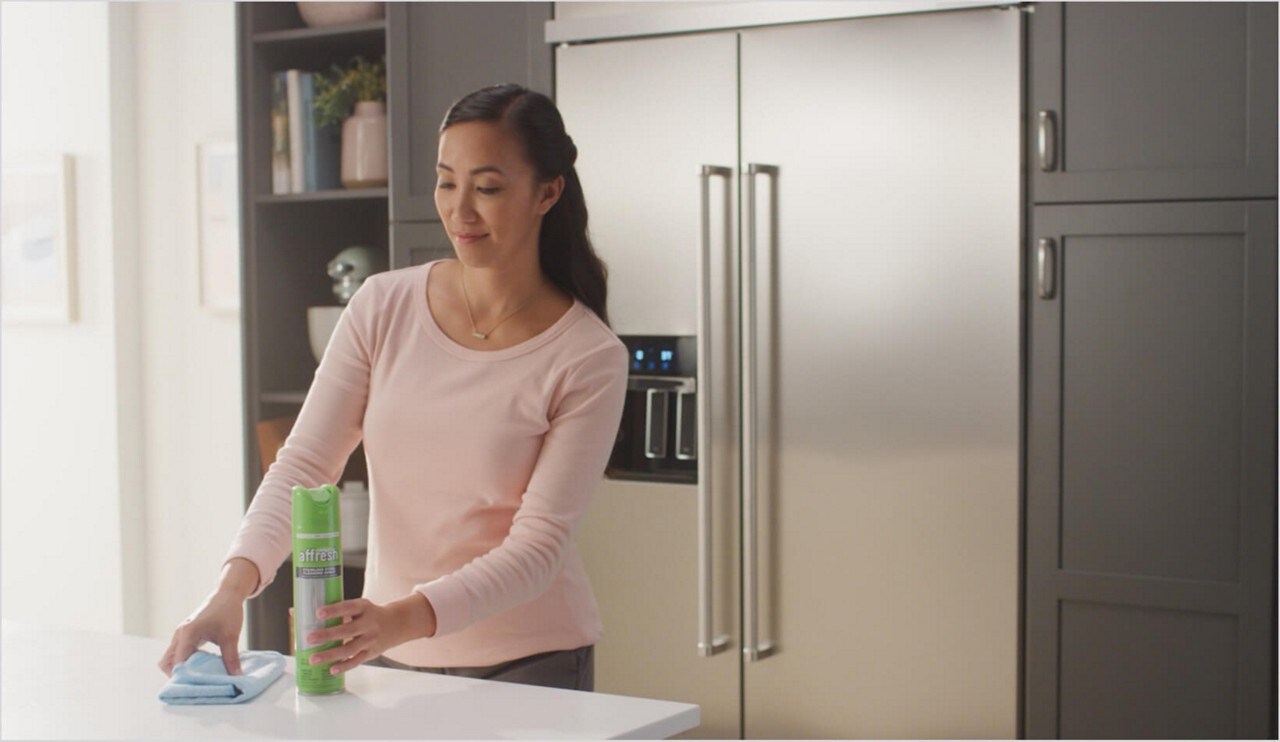

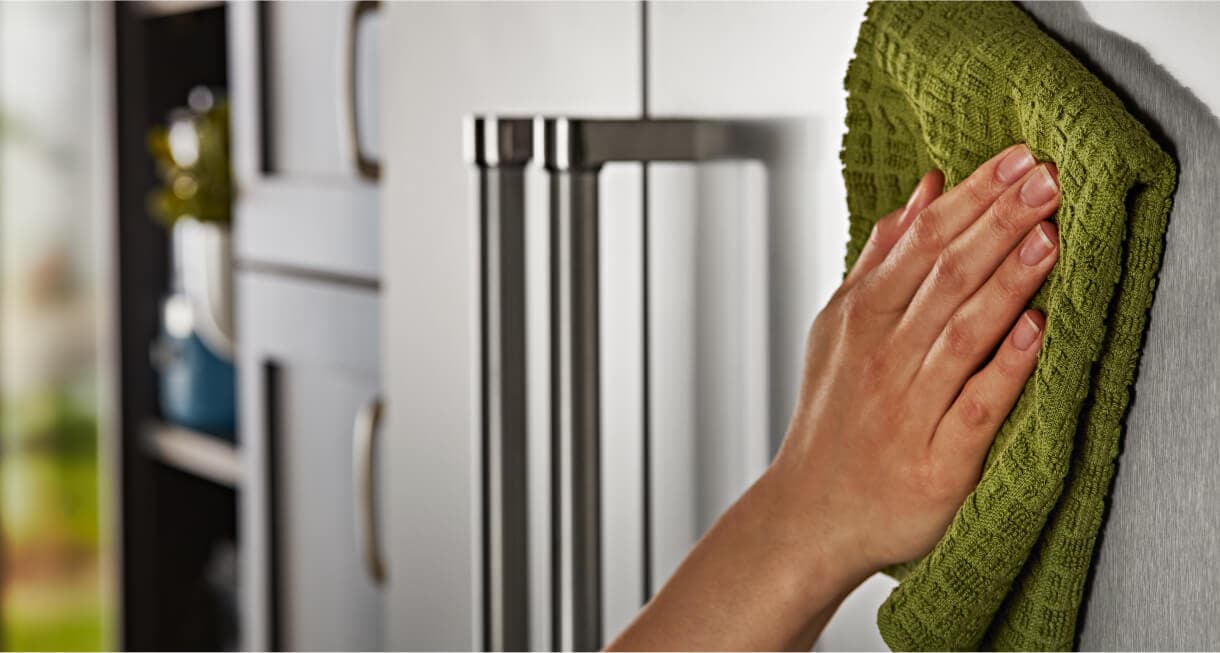

USE APPROVED CLEANER OF CHOICE and wipe in direction of THE grain

DRY THOROUGHLY WITH SOFT CLOTH

PRESS AND HOLD FRESHCHILL™ for 3 seconds TO turn DISPENSER back on
